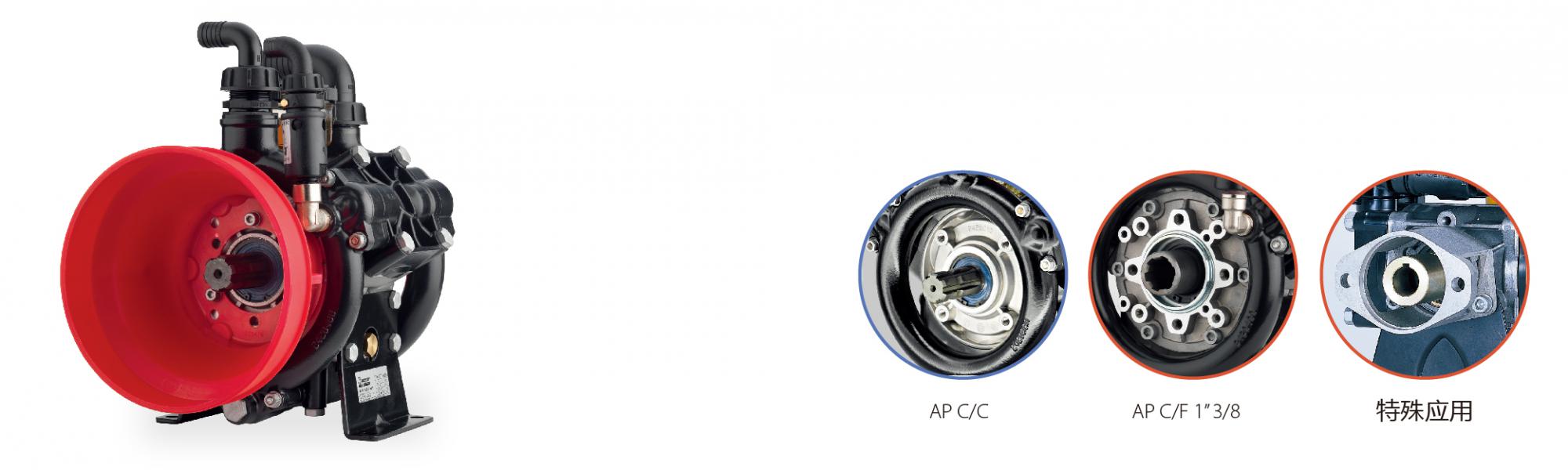

PRESSURE PLASTIC COATED DIAPHRAGM PUMPS#AR 115 bp#AR 135 bp#AR 115/1000 bp
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 115 bp
|
107,9
|
20
|
5,5
|
3
|
15,5
|
306×293×340
|
ø40
|
ø25
|
550
|
|
AR 135 bp
|
128
|
20
|
6,8
|
3
|
15,5
|
306×293×340
|
ø40
|
ø25
|
550
|
|
AR
115/1000 bp
|
94
|
15
|
4,2
|
3
|
15,5
|
306×293×340
|
ø40
|
ø25
|
550
|

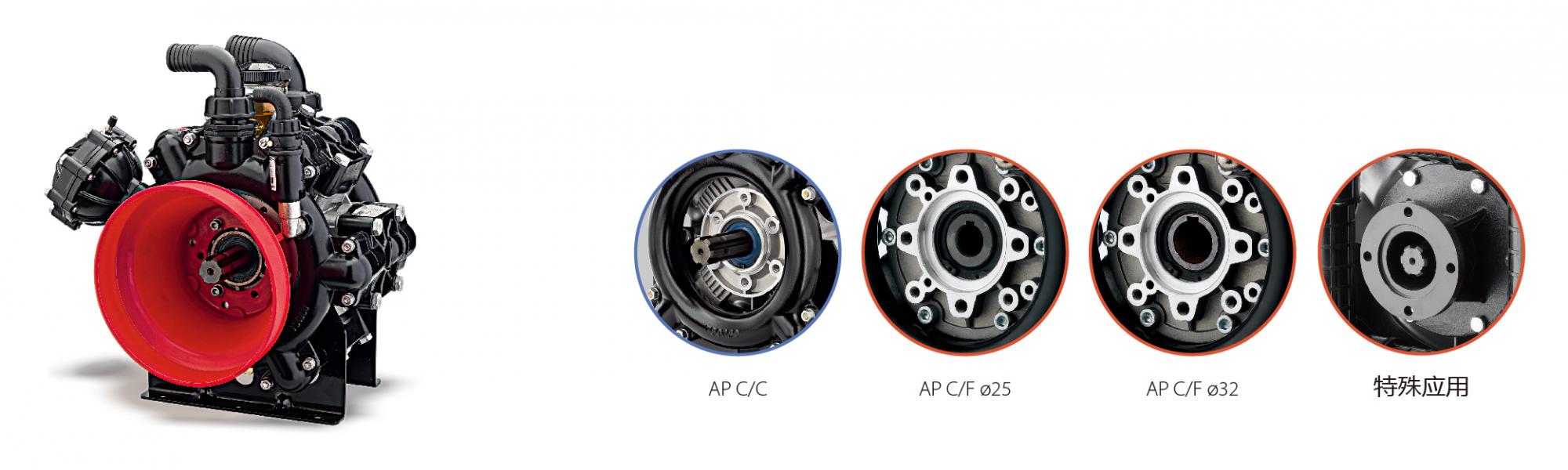

PRESSURE PLASTIC COATED DIAPHRAGM PUMPS#AR 125 bp#AR 145 bp
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 125 bp
|
120,4
|
20
|
5,8
|
3
|
23
|
344×400×300
|
ø40
|
ø25
|
550
|
|
AR 145 bp
|
133
|
20
|
6,3
|
3
|
23
|
344×400×300
|
ø40
|
ø25
|
550
|

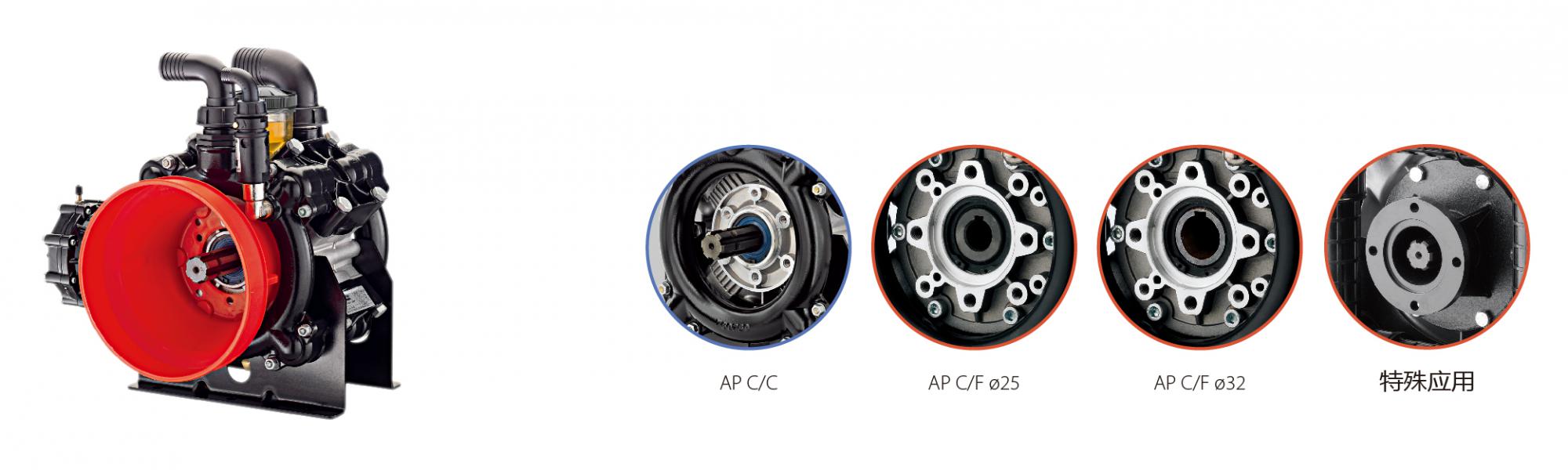

LOW PRESSURE PLASTIC COATED DIAPHRAGM PUMPS#AR 160 bp#AR 185 bp
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 160 bp
|
166,2
|
20
|
8,4
|
4
|
27,5
|
382×422×316
|
ø40
|
ø25
|
550
|
|
AR 185 bp
|
182,1
|
20
|
9,3
|
4
|
27,5
|
382×435×316
|
ø50
|
ø35
|
550
|

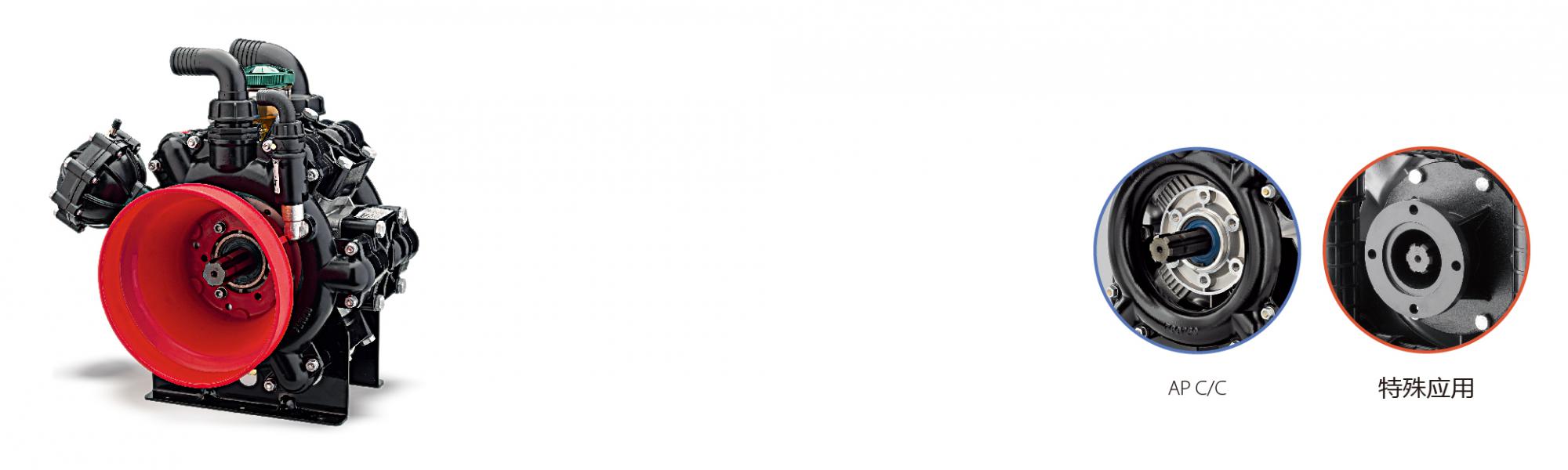

LOW PRESSURE PLASTIC COATED DIAPHRAGM PUMPS#AR 215 bp
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 215 bp
|
219,1
|
20
|
9,9
|
6
|
38,5
|
409×480×316
|
ø50
|
ø35
|
550
|
LOW PRESSURE PLASTIC COATED DIAPHRAGM PUMPS#AR 250 bp#AR 280 bp
Technical Specifications
|
Model
|
Flow
|
Pressure
|
Power
|
N°of diaph.
|
Weight
|
Size
|
Inlet
|
Outlet
|
RPM
|
|
|
l/min
|
bar
|
HP
|
|
kg
|
L×H×W mm
|
mm
|
mm
|
R.P.M.
|
|
AR 250 bp
|
254,4
|
20
|
11,4
|
6
|
38,5
|
409×480×316
|
ø50
|
ø35
|
550
|
|
AR 280 bp
|
277,8
|
20
|
12,9
|
6
|
38,5
|
409×498×316
|
ø60
|
ø35
|
550
|
