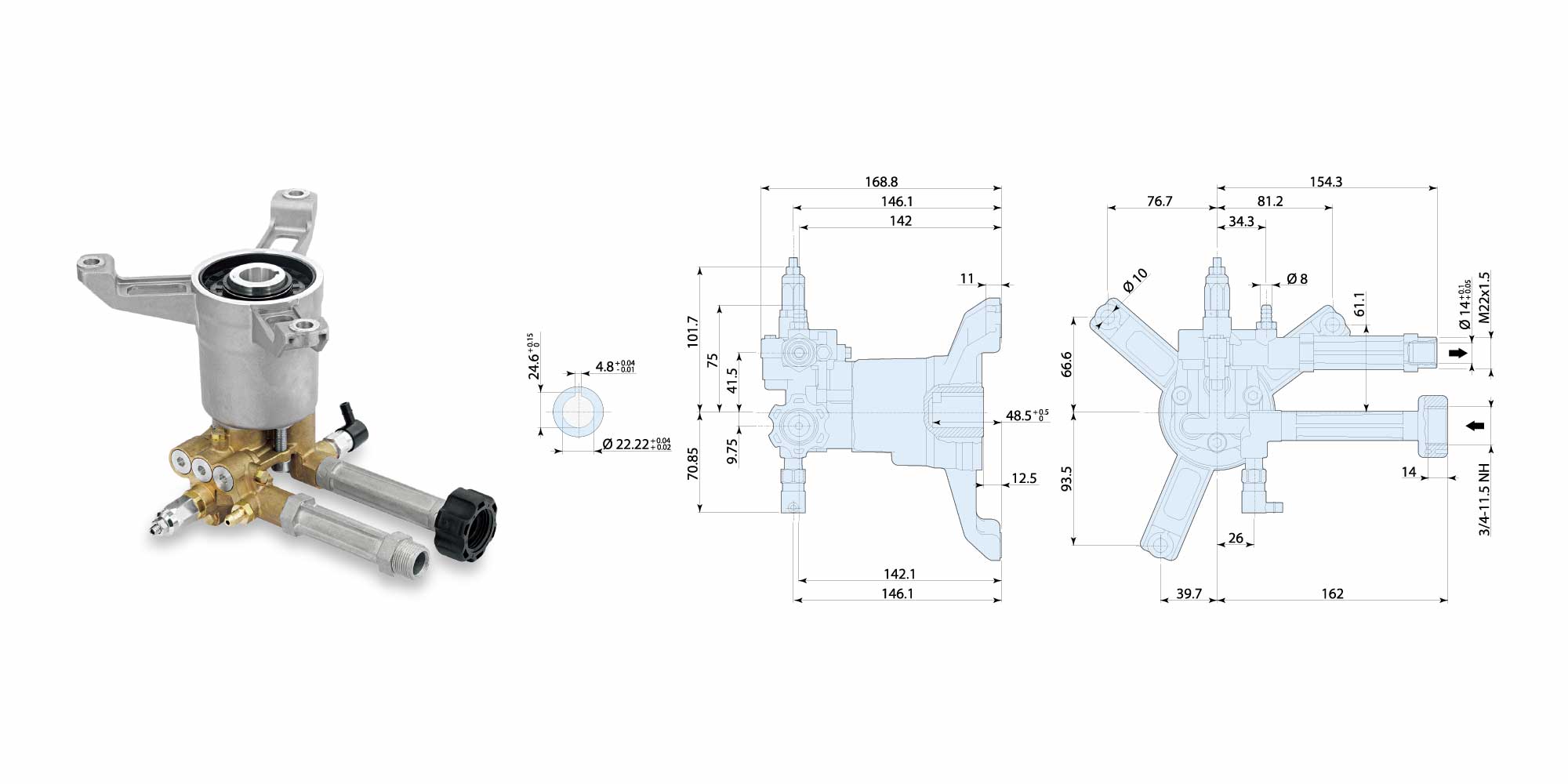

RQV 3400 RPM D version 3/4" with gas engine flange
Technical Specifications
| Model | Flow | Pressure | Power | Weight | RPM | |||
| l/min | gpm | bar | psi | hp | kw | kg | rpm | |
| RQV 2.2G26 | 8.3 | 2.2 | 180 | 2600 | 4.4 | 3.3 | 3.5 | 3400 |
| RQV 2.2G28 | 8.3 | 2.2 | 190 | 2800 | 4.7 | 3.5 | 3.5 | 3400 |
|
RQV 2.4G28 |
9 | 2.4 | 190 | 2800 | 5.3 | 4.0 | 3.5 | 3400 |
|
RQV 2.5G24 |
9.5 | 2.5 | 165 | 2400 | 4.8 | 3.6 |
3.5 |
3400 |
| ● RQV 2.5G30 | 9.5 | 2.5 | 205 | 3000 | 6 | 4.5 |
3.5 |
3400 |
|
● RQV 2.7G30 |
10.3 | 2.7 | 205 | 3000 | 6.5 | 4.8 |
3.5 |
3400 |
RQW 3400 RPM D version 7/8" with vertical gas engine flange
Technical Specifications
| Model | Flow | Pressure | Power | Weight | RPM | |||
| l/min | gpm | bar | psi | hp | kw | kg | rpm | |
| RQW 2.2G26 | 8.3 | 2.2 | 180 | 2600 | 4.4 | 3.3 | 3.5 | 3400 |
| RQW 2.2G28 | 8.3 | 2.2 | 190 | 2800 | 4.7 | 3.5 | 3.5 | 3400 |
|
RQW 2.4G28 |
9 | 2.4 | 190 | 2800 | 5.3 | 4.0 | 3.5 |
3400 |
|
● RQW 2.5G28 |
9.5 | 2.5 | 190 | 2800 | 6.5 | 4.8 | 3.5 | 3400 |
